If you're looking to join metal pieces together but don't have access to a welder, this guide is for you.
We'll cover 10 techniques that can be used to weld without a welder, from soldering and brazing with flux and filler metals, to riveting and cold welding with pressure alone (metal without welding).
Each of these methods has its own advantages and disadvantages; some are better for certain types of applications than others.
With the right technique chosen for your project needs, it's possible not only to join two pieces of metal together without using a welder but also get the same strength as if they were welded!
Soldering
Soldering is a low-temperature welding method that can be used for many different projects. It involves melting a filler metal and using it to join two metal surfaces together, creating an incredibly strong bond.
This technique is ideal for small, delicate projects such as electronics or jewelry making due to its precision and accuracy.
When soldering it’s important to clean the joint thoroughly before applying flux which helps prevent oxidation of the metals and ensures solder flows smoothly into the gap when heated with a soldering iron until melted.
Steps:
Once the iron is heated up, it’s time to start soldering. Hold the tip of your soldering iron against one of the pieces and then touch solder onto that same spot. The heat from the iron will melt down both metals together as well as with solder itself creating a strong bond between them.
After you’ve finished soldering, switch off your equipment and let everything cool down for at least 10 minutes before touching any part of it again or moving on to another project.
Once cooled off completely, use a damp cloth or sponge to clean away any excess flux residue left behind by melting solder while also removing dust particles from sanding earlier on in this process if needed be sure not to miss out on cleaning all corners where dirt might have accumulated during this entire process!
Finally scrape away any extra bits of soldier that may have been left behind after cooling down using either an old toothbrush or something similar like an exacto knife blade - just make sure whatever tool you choose has no sharp edges so there isn't risk damaging metal parts underneath when scraping those last few bits.

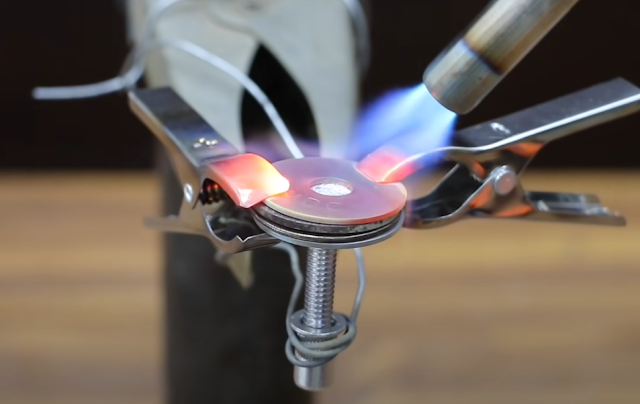

Brazing
It uses a higher temperature filler metal and requires the joint to be heated with a torch until the filler melts and flows into the gap.
Silver brazing, vacuum brazing, dip brazing and torch brazing are some of the most common techniques used for joining metals together.
The heat must be high enough for melting but not too high as it could damage or melt away your base metals.
This technique is commonly used in plumbing, HVAC applications, and other areas where strong bonds are needed between two pieces of metal components.
The process requires careful selection of the right filler material, cleaning and preparation of metal surfaces, use of flux to avoid oxide formation and application of heat at an appropriate temperature.
Once all these steps are completed correctly, you can apply the brazed joint in your project or machinery.
After brazing it is important to clean off any excess materials from the surface for better performance and aesthetics.
The main steps involved in the brazing process are:
- ensuring a good fit between the two base metals; cleaning them;
- applying flux (a chemical compound) on joint surfaces prior to heating; assembling parts correctly so they hold their position during heating;
- then finally, adding filler metal while at high temperature before cooling down and cleaning up any residue left behind by fluxes or oxide scale present on assembly surfaces after brazing.
Riveting
Riveting is an essential technique for connecting two or more metal surfaces.
It involves driving a metal pin through the materials, creating a permanent connection that won't come apart easily.
This method of joining metals has been used in sheet metal fabrication, aircraft assembly and shipbuilding for centuries and continues to be one of the most reliable ways to join components together.
To rivet effectively requires drilling holes into each material before inserting the rivet and then using a special tool called a rivet gun to deform its end so it secures both pieces together tightly.
Steps:
The first step in riveting two pieces of metal together is to make sure that each piece has either punched or drilled holes.
For lighter gauge sheets, punching works best, while drilling should be used for heavier sections. It's also important to ensure there's a burr left after each drilling operation so that when the rivet is inserted it will hold firmly in place.
Once all the holes are prepped correctly you'll need to insert one rivet at a time into each hole before striking them hard with another tool so their heads straighten out properly against both pieces of metal being joined together.
After this last step you can let everything cool down which will cause the rivets themselves to pull both parts close enough together they become securely connected as one unit without any gaps or weak spots between them where air could get through and compromise its structural integrity over time due do poor craftsmanship during assembly process itself!
The final result should be two pieces of metal joined tightly by several strong points made up from multiple well-placedrivets - something which not only looks great but also offers superior strength comparedto other methods such as welding or bolting on additional components separately afterwards instead!
Riveted joints provide an economical solution too since they require less labor than more complex techniques like soldering would require;
plus they're fast easy way join materials without having worry about heat distortion problems often associatedwith welding processes either!
Bolted Connections
Bolted connections are an effective and reliable way to join two or more metal pieces together.
This technique is widely used in construction, automotive repair, and machinery assembly because it provides a strong connection that won't easily come apart.
To create the connection, holes must be drilled through the materials being joined then bolts inserted.
Finally nuts and washers are tightened around the bolts to hold everything securely together for a long-lasting bond between components.
Adhesive Bonding
Adhesive bonding is a great way to join two or more metal surfaces, and it's commonly used in automotive repair, aircraft assembly, and construction.
To ensure the best outcome for your project, make sure you use the right adhesive for the materials you're joining. Make sure to clean all surfaces thoroughly before applying your adhesive according to manufacturer instructions.
Finally clamp everything together until the glue sets!
With these steps in place you can be confident that your pieces will stay securely bonded together!
Making preparations for a metal glue project is an important step that must not be overlooked.
It’s essential to ensure the safety of yourself and your surroundings before beginning any job, especially when it involves using potentially hazardous chemicals like metal glue.
To start off, make sure you have all the necessary tools and materials within reach so you don’t have to waste time looking for them during the process.
Once everything is in place, check out your work area carefully to see if there are any potential hazards or obstacles that could interfere with what needs to be done.
Make sure there’s enough room and ventilation available as well as some protective cloths or newspaper laid down on nearby furniture pieces in case of spills or splashes from the adhesive solution.
Lastly, remember always wear gloves made of nitrile or latex while handling this type of material since other fabrics such as PVC cotton won't provide adequate protection against skin contact with corrosive substances found in metal glues..
With these simple steps taken into consideration beforehand, you can rest assured knowing every aspect has been prepared properly before starting on a new project!
Cold Welding
Cold welding is an innovative technique that allows two metals to be joined together without the use of heat or filler metal.
This process involves pressing two clean metal surfaces together with a high force, which causes the atoms on their surface to bond and create a strong joint.
Cold welding can be used for many applications such as space exploration and electronics, making it an incredibly useful tool in modern engineering.

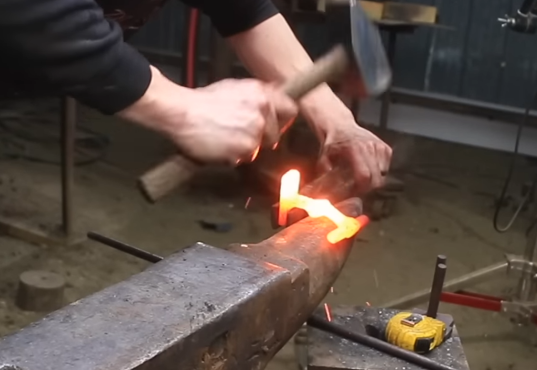

What is forge welding?
It involves heating the metals in a forge until they are hot enough to fuse together, then hammering them on an anvil until they bond.
This method of joining metals has been used for centuries by blacksmiths and metal sculptors alike, requiring skill and practice but yielding great results when done correctly.
Forge welding is still widely practiced today due to its effectiveness in creating strong connections that can withstand extreme temperatures or pressures over time.
Thermite Welding
Thermite welding is a unique process that uses a chemical reaction to create intense heat, allowing two or more metal pieces to be melted together.
This technique is commonly used in railroad construction and repair as it provides strong bonds between metals of different compositions.
To perform thermite welding, powdered aluminum and iron oxide are mixed together before being ignited with a magnesium strip which causes the mixture to react producing an extremely high temperature capable of melting the metal pieces together quickly and effectively.
Friction Stir Welding
Friction stir welding is an innovative technique that has revolutionized the aerospace and automotive industries.
This process involves using a rotating tool to heat and stir metal pieces, creating a solid-state bond between them.
The process requires clamping two or more pieces of metal together before applying the spinning tool which generates enough friction to soften the metals and enable them to join together into one piece.
This method offers many advantages over traditional welding methods such as being able to weld aluminum alloys without melting or warping, greater strength in joints due its solid-state bonding properties, improved fatigue life for components made from dissimilar materials, faster production times with fewer defects when compared with other techniques - making it ideal for high volume manufacturing processes in these industries.
Explosive Welding
Explosive welding is an incredibly efficient and powerful way to join two or more metal pieces together.
It involves using a controlled explosion to create the bond, with the force of the blast being enough to cause them to fuse into one solid piece. This technique is commonly used in construction for large structures and tanks, as it allows for quick assembly without compromising on strength or durability.
To use explosive welding, all you need do is place your pieces on top of each other before setting off an explosive charge – no tools required!
How explosion welding process works
FAQs
Is it possible to weld without a welder?
Yes, there are several techniques you can use to weld without a welder,
- including soldering
- brazing
- riveting
- bolted connections
- adhesive bonding
- cold welding
- forge welding
- thermite welding
- friction stir welding
- and explosive welding
What is the best welding method for small, delicate projects?
Soldering is a low-temperature welding method that is ideal for small, delicate projects.
Alternatives to joining metal without welding?
We are happy to inform you that there are several alternative methods of joining metals together without welding.
These include riveting, brazing and soldering, adhesive bonding and mechanical fastening techniques such as screws or bolts.
Can you use an adhesive instead of welding for metal to metal joining?
Adhesives can be used in some situations as an alternative to welding, but it is important to consider a few factors before making that decision.
The type and thickness of the metals being joined will determine which adhesive is best suited for the job.
Why Braze instead of weld?
The short answer is that Braze welding has many advantages over traditional welds.
Braze welding is a process of joining two metals together with an alloy filler material instead of melting and fusing them like in traditional welding processes.
This allows for more precise control over temperature, as well as better heat transfer between the two metals being joined.
How can we join metals without heat?
Have you ever wondered how to join two pieces of metal without using heat? It may seem like a difficult task, but there are actually several ways to do it.
From welding and soldering to brazing and gluing, these methods can help you create strong bonds between metals without the need for high temperatures.
What is the best welding method for railroad construction and repair?
Thermite welding is a technique commonly used in railroad construction and repair.
What is the best welding method for space applications?
Cold welding is a technique commonly used in space applications.
What is the best welding method for automotive repair?
One of the most common welding methods used in this field is adhesive bonding.
Does JB Weld Work?
JB Weld is a great option when joining metal to metal.
It is a two-part epoxy cold weld system that cures once the surrounding temperature reaches high enough levels and cannot be uncured after it has been cured, making it an incredibly strong adhesive with tensile strength of 3960 PSI.
We have had success using this product on many different types of projects, from broken parts to dissimilar parts and long thin pieces as well as filling holes too.
Some individuals have even mentioned online that JB Weld can be used for fixing leaky pipes!
In order for JB Weld to work properly you must make sure the surface area being applied onto is clean and rough;
acetone works particularly well in cleaning surfaces but just remember not to leave any oil residue behind before applying the mixture.
When mixing together equal amounts of hardener and resin you should use paper plates or popsicle sticks so they are thoroughly combined otherwise your results may not meet expectations!
In our picture above we used 2 different colors in order demonstrate how much coverage one batch can provide - if done correctly, there will hardly be any visible seams left behind when finished!
Video tutorials
Stick Aluminum Together Without a Welder
How To Install Solid Aluminum Rivets
JB Weld SteelStik Review-Real Life Use
Adhesive vs rivets vs welding
Conclusion
If you're looking for an exciting and rewarding way to work with metal, welding is a great option. With the techniques covered in this guide, you can get started without having to invest in expensive equipment.
Whether it's jewelry making or blacksmithing or construction projects, there are welding methods that can help you create strong bonds between pieces of metal quickly and easily.
So take some time to experiment with these techniques and find out which ones work best for your project – happy welding!
